Real ASCII - Edge Trace Filter

2025-12-17

Tool

/

Real ASCII

The trace image filter includes two steps. The first step generates the contour images. You will choose one contour image that you want to use for the next step. The second step generates the Trace ASCII Art. The following guide describes the process.

📖 Guide 1: Draw Image Contour#

1️⃣ cd to src/edge_trace.

2️⃣ Execute contour.py. Example:

1
python contour.py --image_path ../../resource/imgs/girl_with_pearl_earring.jpg --canny1_min 0 --canny1_max 270 --canny1_step 20 --canny2_min 0 --canny2_max 270 --canny2_step 20 --dilate_iter 1 --erode_iter 0 --gb_sigmaX 0 --gb_size 5 --contrast_factor 16 --contrast_window_size 8

Another Example:

1
python contour.py --image_path ../../resource/imgs/tsunami.jpg --canny1_min 0 --canny1_max 270 --canny1_step 20 --canny2_min 0 --canny2_max 270 --canny2_step 20 --dilate_iter 1 --erode_iter 0 --gb_sigmaX 0 --gb_size 5 --contrast_factor 4 --contrast_window_size 8

Parameters

argument	help
—image_path	The path of the image.
—save_folder	The folder where the contour images will be saved to.
—canny1_min	The minimum value of threshold1 for Canny.
—canny1_max	The maximum value of threshold1 for Canny.
—canny1_step	The step value of threshold1 for Canny.
—canny2_min	The minimum value of threshold2 for Canny.
—canny2_max	The maximum value of threshold2 for Canny.
—canny2_step	The step value of threshold2 for Canny.
—contrast_factor	The contrast factor based on the original image.
—contrast_window_size	The kernel size of contrast filter.
—gb_size	The kernel size of GaussianBlur.
—gb_sigmaX	The standard deviation of GaussianBlur kernel in the horizontal direction.
—kernel_size	The kernel size of contour function.
—dilate_iter	The number of iterations of dilate.
—erode_iter	The number of iterations of erode.
—invert_color	If included, paint the edges white and the background black.

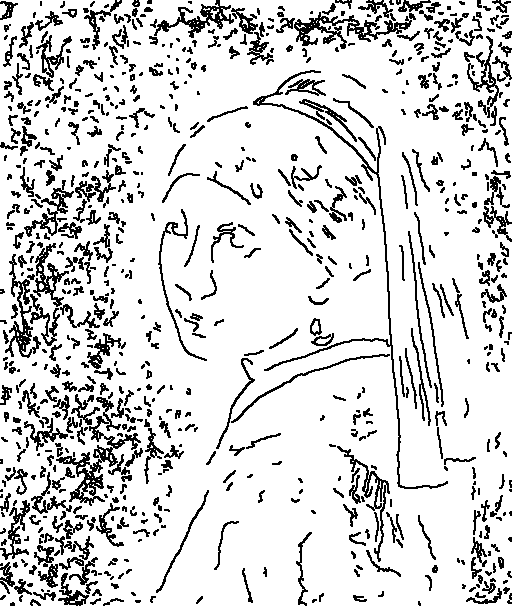

An example of contour image:

📖 Guide 2: Edge Trace ASCII Art#

1️⃣ cd to src/edge_trace.

2️⃣ Execute edge_trace.py. Example:

1
python edge_trace.py --image_path ./contour/contour_180_260.png --resize_factor 4 --chars file --font C:/Windows/Fonts/consolab.ttf --char_bound_width 13 --char_bound_height 22 --match_method slow

Japanese Hiragana:

1
python edge_trace.py --image_path ./contour/contour_240_200.png --resize_factor 4 --chars file --char_bound_height 24 --char_bound_width 22 --font C:/Windows/Fonts/msgothic.ttc --font_size 24 --chars_file_path ../../resource/char_files/chars_file_hiragana.txt --match_method vector --approx_ratio 0.5 --vector_top_k 5 --invert_color

An Example using Palette file, Check out the palette tutorial if you would like to make your own palette:

1
python edge_trace.py --image_path ./contour/contour_180_260.png --resize_factor 4 --palette_path ../../resource/palette_files/palette_chars.json --match_method slow

If you want to preserve character anti-aliasing:

1
python edge_trace.py --image_path ./contour/contour_180_260.png --resize_factor 4 --palette_path ../../resource/palette_files/palette_chars.json --match_method slow --antialiasing

Parameters

argument	help
—image_path	The path of the image.
—save_path	The directory where the result image will be saved to.
—resize_method	The image resize method. Check below for available options.
—resize_factor	The resize factor of the new image.
—font	The font to be used to render the image.
—chars	The characters you want to use for rendering the image. Check below for available options.
—chars_file_path	The text file of your characters.
—font_size	The font size.
—char_bound_width	The width of one character. We assume each character has the same size.
—char_bound_height	The height of one character. We assume each character has the same size.
—invert_color	If included, invert the color of the result image.
—max_workers	The maximum number of multithread workers.
—match_method	The algorithm for template (character) matching. Check below for available options.
—approx_ratio	Only used if the matching method is ‘vector’. Each smaller image will be resized by this value before comparison.
—vector_top_k	Only used if the matching method is ‘vector’. Only compare the smaller image to the k best candidates.
—palette_path	Use a palette. Only the first template will be used. The values in template can be overridden with explicit arguments.
—color_option	The option to color the image. Check below for available options.
—original_image_path	REQUIRED if you are doing `color_option=original`.
—save_ascii	If included, the characters will be saved to a file.
—save_ascii_path	The path to save the characters. Check out the ‘ascii_output’ folder for the results.
—antialiasing	If included, retain anti-aliasing of the characters.
—pad_width	Add padding around every character vertically.
—pad_height	Add padding around every character horizontally.
—flow_match_method	The algorithm for non-fixed width template (character) matching. Check below for available options.
—binary_threshold	The threshold value for converting a grayscale image to binary. This is only used when `flow_match_method=fast`.
—reference_num	Only used if the palette file is non-fixed width. Takes previous character as reference to replace ‘filler’ characters. A filler is a 1px * the row height empty character used to filling in the gaps that cannot be matched with the given characters in palette.
—max_num_fill_item	Only used if the palette file is non-fixed width. This value is the maximum number of characters used to fill any gap.
—filler_lambda	Only used if the palette file is non-fixed width. Larger lambda indicates more emphasis on the gap filling with palette characters and less emphasis on the similarity between filling choices and the references.
—char_weight_sum_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of character weights when deciding the next character.
—curr_layer_weight_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of a particular layer when deciding the next character. By default, we assume that the gradient image in higher index have more importance.
—offset_mse_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of mean squared error when deciding the next character. Higher MSE means less likely to be chosen.
—coherence_score_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of staying in the same level when deciding the next character.

resize_method

code	help
nearest neighbor	Resize image with nearest neighbor algorithm.
bilinear	Resize image with bilinear algorithm.

chars

code	help
ascii	Use all 128 standard ASCII characters as rendering characters.
file	Read characters from file `trace/chars_file.txt`. New line character will be excluded.

match_method

code	help
slow	The slowest matching algorithm with the best matching quality. The templates are grayscale.
optimized	Almost twice as fast as slow. The templates are binary. The resulting image will look bold compared to slow method.
fast	Almost twice as fast as optimized. Utilizes XOR comparison. The resulting image is very similar to optimized method.
vector	Almost ten times as fast as slow. Vectorize all smaller images and compare the flattened array. The resulting image is much bolder.

color_option

code	help
original	Color the ASCII art with the (resized) original image’s color.

flow_match_method

code	help
slow	The slowest matching algorithm with the best matching quality. The templates are grayscale.
fast	Both the image and templates will be converted to binary. Utilizes XOR comparison.

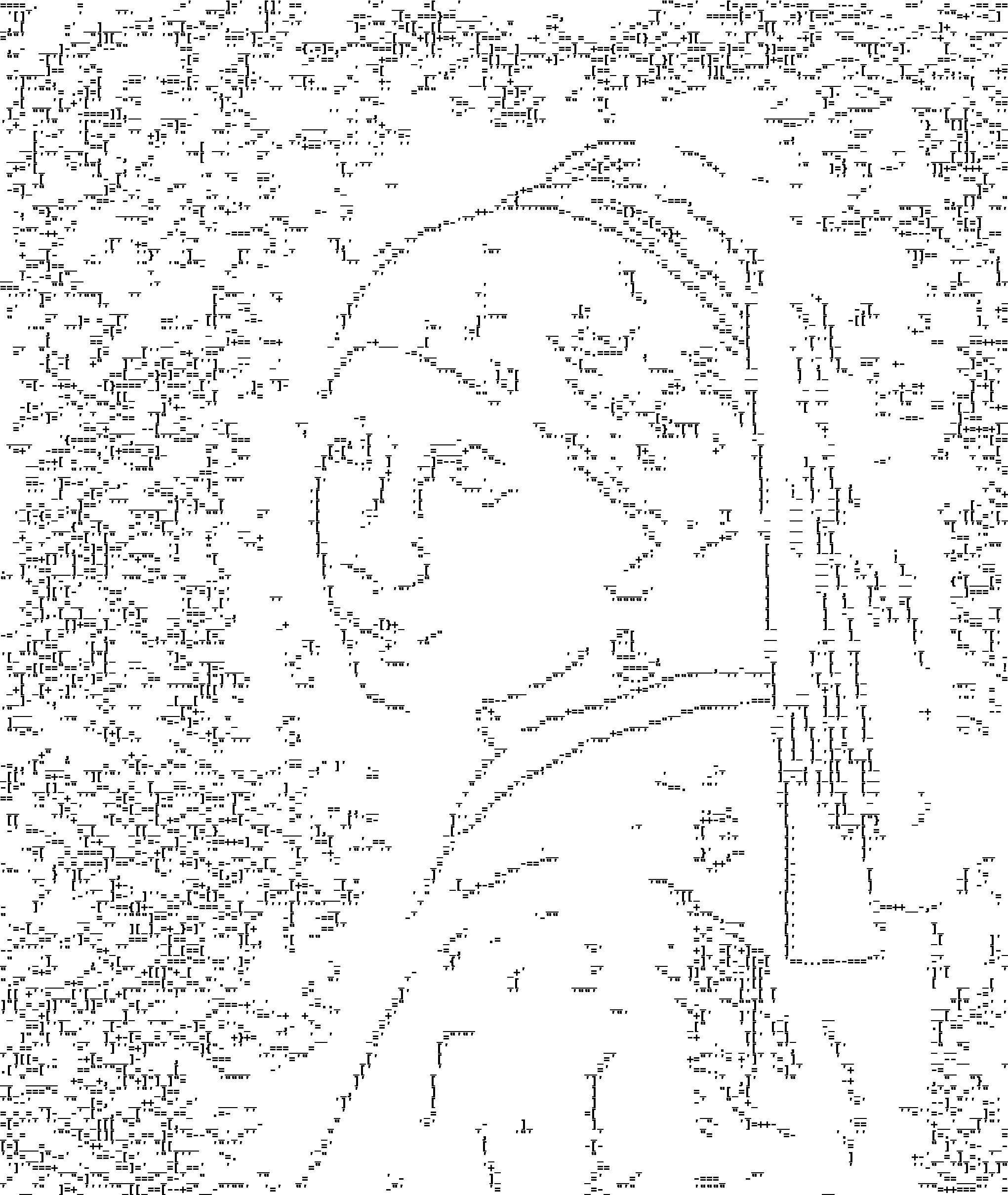

An example of ascii art image:

📕 Extra Guide: Joined-Trace ASCII Art#

1️⃣ cd to src/edge_trace.

2️⃣ Execute joined_trace.py.

Example:

1
python joined_trace.py ^
2
--image_path ../../resource/imgs/girl_with_pearl_earring.jpg ^
3
--canny1 180 ^
4
--canny2 260 ^
5
--gb_size 5 ^
6
--gb_sigmaX 0 ^
7
--kernel_size 2 ^
8
--dilate_iter 1 ^
9
--erode_iter 0 ^
10
--contrast_factor 16 ^
11
--contrast_window_size 8 ^
12
--resize_factor 4 ^
13
--resize_method nearest_neighbor ^
14
--match_method slow ^
15
--palette_path ../../resource/palette_files/palette_chars.json

Parameters

argument	help
—image_path	The path of the image.
—canny1	The value of threshold1 for Canny.
—canny2	The value of threshold2 for Canny.
—gb_size	The kernel size of GaussianBlur.
—gb_sigmaX	The standard deviation of GaussianBlur kernel in the horizontal direction.
—kernel_size	The kernel size of contour function.
—dilate_iter	The number of iterations of dilate.
—erode_iter	The number of iterations of erode.
—contrast_factor	The contrast factor based on the original image.
—contrast_window_size	The kernel size of contrast filter.
—save_path	The directory where the result image will be saved to.
—resize_method	The image resize method. Check below for available options.
—resize_factor	The resize factor of the new image.
—font	The font to be used to render the image.
—chars	The characters you want to use for rendering the image. Check below for available options.
—chars_file_path	The text file of your characters.
—font_size	The font size.
—char_bound_width	The width of one character. We assume each character has the same size.
—char_bound_height	The height of one character. We assume each character has the same size.
—invert_color	If included, invert the color of the result image.
—max_workers	The maximum number of multithread workers.
—match_method	The algorithm for template (character) matching. Check below for available options.
—approx_ratio	Only used if the matching method is ‘vector’. Each smaller image will be resized by this value before comparison.
—vector_top_k	Only used if the matching method is ‘vector’. Only compare the smaller image to the k best candidates.
—palette_path	Use a palette. Only the first template will be used. The values in template can be overridden with explicit arguments.
—color_option	The option to color the image. Check below for available options.
—save_ascii	If included, the characters will be saved to a file.
—save_ascii_path	The path to save the characters. Check out the ‘ascii_output’ folder for the results.
—antialiasing	If included, retain anti-aliasing of the characters.
—flow_match_method	The algorithm for non-fixed width template (character) matching. Check below for available options.
—binary_threshold	The threshold value for converting a grayscale image to binary. This is only used when `flow_match_method=fast`.
—reference_num	Only used if the palette file is non-fixed width. Takes previous character as reference to replace ‘filler’ characters. A filler is a 1px * the row height empty character used to filling in the gaps that cannot be matched with the given characters in palette.
—max_num_fill_item	Only used if the palette file is non-fixed width. This value is the maximum number of characters used to fill any gap.
—filler_lambda	Only used if the palette file is non-fixed width. Larger lambda indicates more emphasis on the gap filling with palette characters and less emphasis on the similarity between filling choices and the references.
—char_weight_sum_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of character weights when deciding the next character.
—curr_layer_weight_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of a particular layer when deciding the next character. By default, we assume that the gradient image in higher index have more importance.
—offset_mse_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of mean squared error when deciding the next character. Higher MSE means less likely to be chosen.
—coherence_score_factor	Only used if the palette file is non-fixed width. This factor indicates the importance of staying in the same level when deciding the next character.

resize_method

code	help
nearest neighbor	Resize image with nearest neighbor algorithm.
bilinear	Resize image with bilinear algorithm.

chars

code	help
ascii	Use all 128 standard ASCII characters as rendering characters.
file	Read characters from file `trace/chars_file.txt`. New line character will be excluded.

match_method

code	help
slow	The slowest matching algorithm with the best matching quality. The templates are grayscale.
optimized	Almost twice as fast as slow. The templates are binary. The resulting image will look bold compared to slow method.
fast	Almost twice as fast as optimized. Utilizes XOR comparison. The resulting image is very similar to optimized method.
vector	Almost ten times as fast as slow. Vectorize all smaller images and compare the flattened array. The resulting image is much bolder.

color_option

code	help
original	Color the ASCII art with the (resized) original image’s color.

flow_match_method

code	help
slow	The slowest matching algorithm with the best matching quality. The templates are grayscale.
fast	Both the image and templates will be converted to binary. Utilizes XOR comparison.

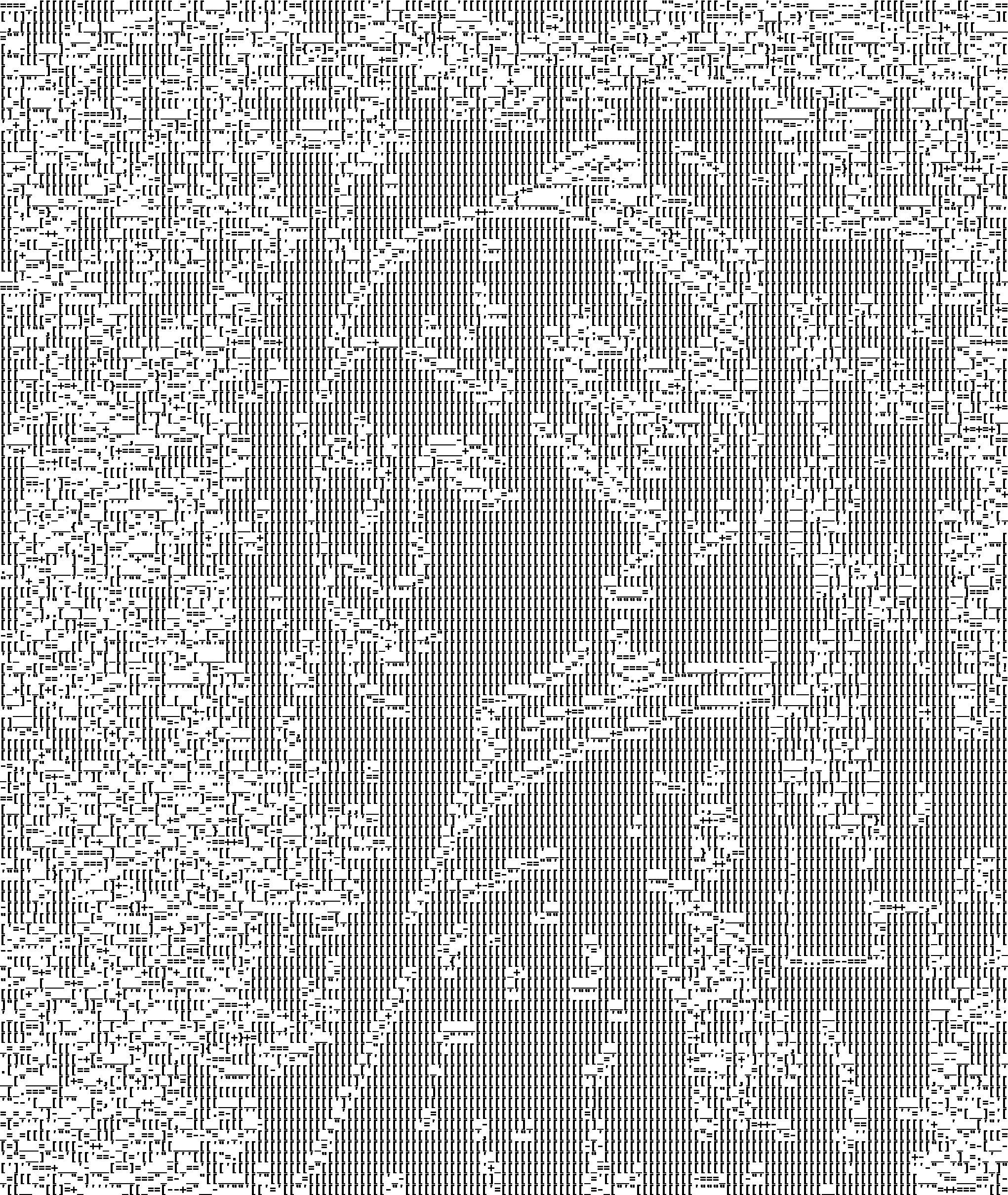

An example of ascii art image:
